Inside view of sunroof

Sunroof open. These are rare!

New custom interior installed January 20, 2017.

Converted to electric fuel pump

B-18 engine

Removing the interior

3 layers of pad and carpet!

Front view of floorboards

Passenger floorboard and seat rails

Passenger side kick panel and floor

28 pounds of carpet and padding

Trunk view showing speaker holes in shelf

3 layers of carpet and pad removed

Rear seat bottom removed

Trunk left side

View of driver side kick panel

This is the original upholstery. A custom interior is being installed and is due for completion in mid-January.

Hat shelf with speaker holes

Rusted driver seat rail

Interior view of trunk with seat out

Passenger floor cut out. New rail and door sill piece installed.

Drivers side floor cut out

New metal between tank and bumper

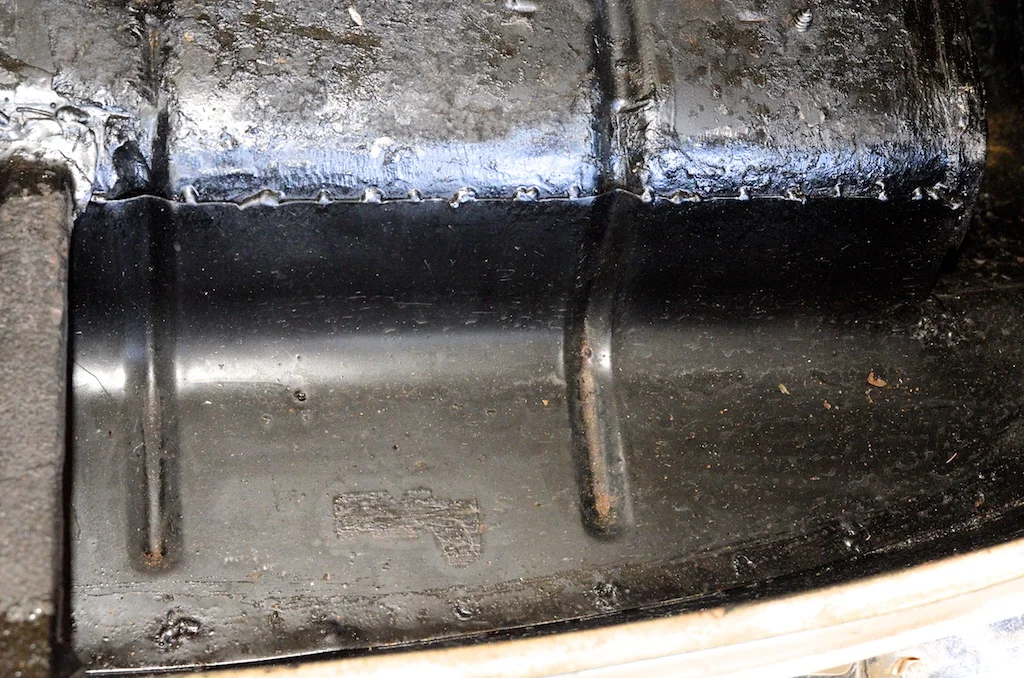

New passenger floor pan installed.

New driver floor pan installed

New driver side seat rail installed

Driver side floor pan installed

Rear sway bar mount on drivers side


Rear sway bar mount on passenger side


New metal- trunk floor behind bumper

Passenger floor pan painted with POR-15


Trunk sealed with POR-15

Passenger side floor pan installed and painted

Sound absorption mats being installed

Sound absorption mats on passenger side

Passenger side

Rear seat area now fully lined

Doors, floor and kick panel fully lined

Finished with sound absorption layer

Lots of cutting and fitting!

Jute pad being installed

Nearly done with jute padding.

A view of the rear sway bar from IPD. These are heavy-duty bars!

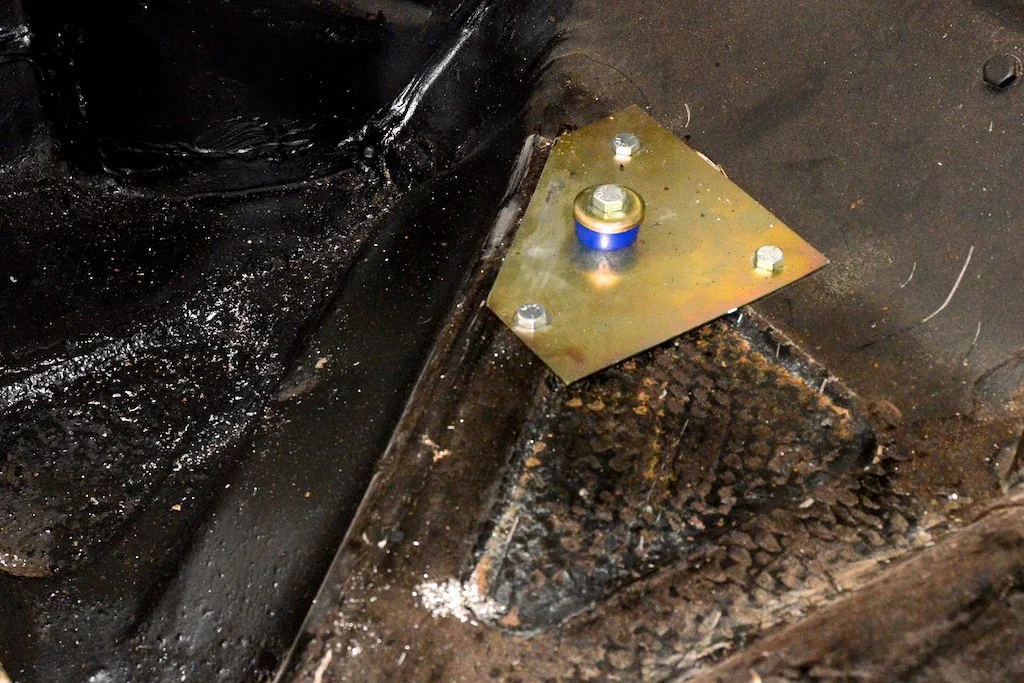

Rear sway bar. Right side mount shown. These are serious bars. Very high quality.

Front sway bar. This bar made a huge difference in the handling.

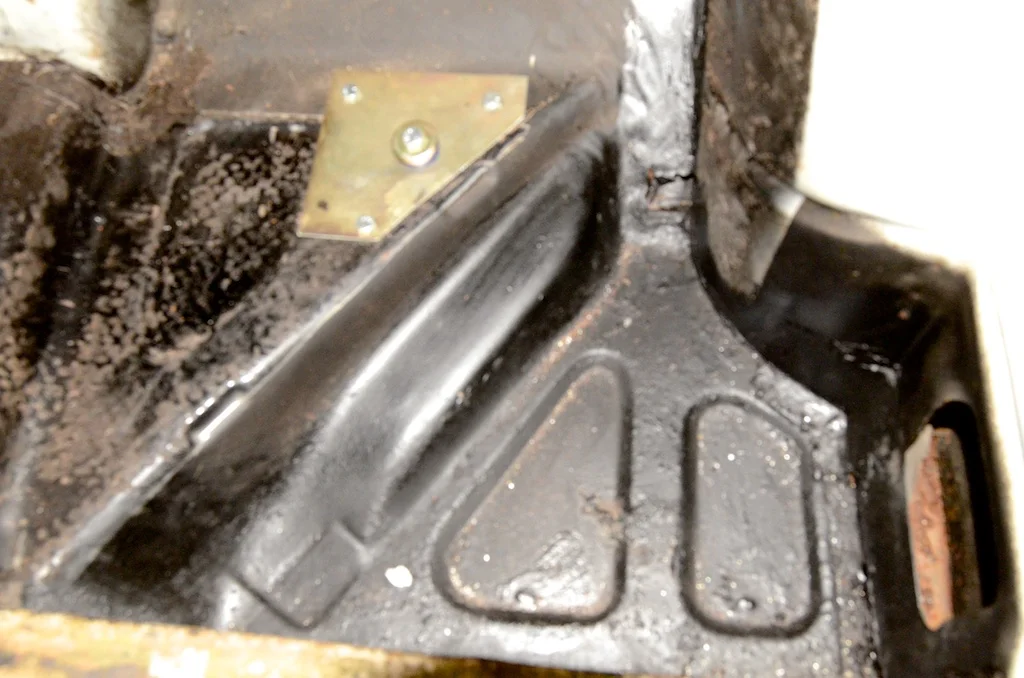

View of the new floor brace, with the new clutch linkage parts installed. This was lots of work.

Another view of the new clutch linkage installed.

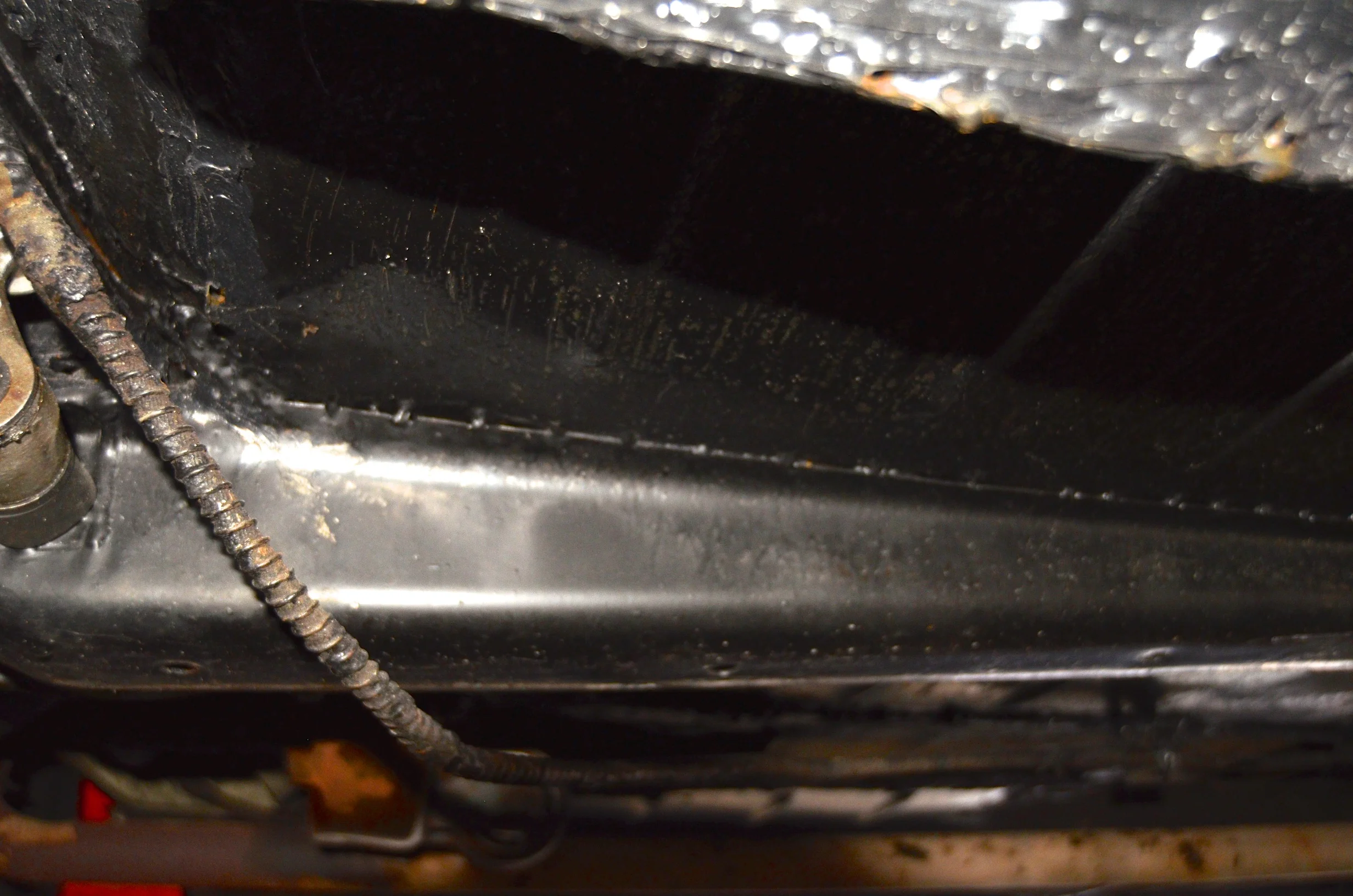

A view of the new floor pan brace.
